| Technical Specifications Allround M24 |
|
|---|---|

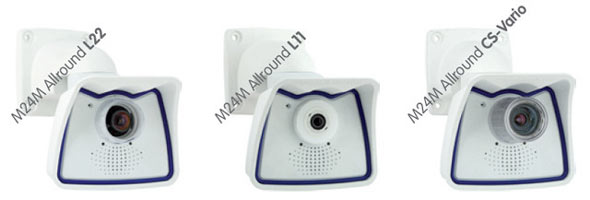

Models |
IT, IT-Night, Sec, Sec-Night, Sec-CSVario, Sec-D11, Sec-N11 |
Lenses |
11 to 135 mm format, horizontal angle 180° to 15° |
Sensitivity |
Color: 1 lux (t=1/60 s), 0,05 lux (t=1/1 s) |
Sensor |
1/2" CMOS, progressive scan |
Max. image resolution |
Color: 2048 x 1536 (3MEGA), |
Image format |
2048 x 1536, 1280 x 960, 1024 x 768, 800 x 600, |
Max. frame rate (M-JPEG) |
VGA: 25 fps, TV-PAL: 18 fps, MEGA: 8 fps, 3MEGA: 4 fps |
Max. Video stream (MxPEG) |
VGA: 30 fps, TV-PAL: 30 fps, MEGA: 30 fps, 3MEGA: 20 fps |
Image compression |
MxPEG, M-JPEG, JPG, H.263 (with Video-VoIP only) |
Internal DVR |
MicroSD-Slot (camera-internal video recording up to 32GB) |
External storage |
Directly on NAS and PC/Server without additional recording software |
Software (inclusive) |
Video-Management-Software MxEasy, |
Image processing |
Backlight compensation, automatic white balance, image |
Virtual PTZ |
Digital Pan/Tilt/Zoom, continuous 8x zoom |
Alarm/Events |
Triggering of events by integrated multiple-window motion detection, external signal, temperature sensor, notification over email, FTP, IP-Telephony (VoIP, SIP), visual/acoustic alarm Pre- and post-alarm images |
Audio |
Integrated microphone and speaker, lip-synchronous audio, two-way speaker, audio recording |
Interfaces |
Ethernet 10/100, USB, MxBus |
Audio/Telephony |
VoIP, SIP, two-way speaker, remote control with key code, event notification |
Security |
User-/Group management, HTTPS/SSL, IP address filter, IEEE 802.1x, Intrusion Detection, digital image signature |
Certificates |
EMV (EN55022, EN55024, EN61000-6-2, FCC part 15B, AS/NZS3548) |
Power supply |
Power over Ethernet (IEEE 802.3af), |
Operating conditions |
IP66 (DIN EN 60529), -30 to +60 °C (-22°F to +140°F) |
Dimensions |
WxDxL: 14 x 23 x 19 cm, Weight: ca. 750 g |
Standard delivery |
Weatherproof housing (reinforced composites - PBT), white, wall/ceiling mount, mounting parts, patch cable, manual, software, 4 GB MicroSD card |
| Available Accessories for Allround M24M |
||
|---|---|---|
Pole Mount |
Lens Cover with Glass Pane |
Power Adapter PoE Set |
|
|
|
for M24, M22, M12 and M10
|
for M24 and M22
|
|
ExtIO Extension Module |
Lenses |
|
|
|
|
|
Lenses from Super Wide Angle (90°) to Tele (15°) for all MOBOTIX cameras. Detailed information about our lenses can be found on the site lens options. |
|
| Lens Table |
|||||||
|---|---|---|---|---|---|---|---|
| Order No. |
L11 |
L22 |
L32 |
L43 |
L65 |
L135 |
CS-Vario |

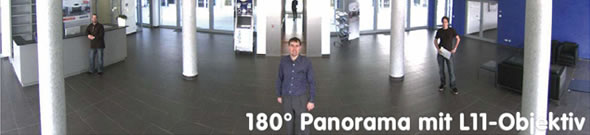

Original image |
|
|
|
|
|
|
|
35mm equivalent |
11 mm |
22 mm |
32 mm |
43 mm |
65 mm |
135 mm |
24-54 mm |
Real focal length |
1.8 mm |
4 mm |
6 mm |
8 mm |
12 mm |
25 mm |
4.5-10 mm |
Aperture |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.5 |
1.6-2.3 |
Image angle horizontally |
180° |
90° |
60° |
45° |
31° |
15° |
73°-37° |
Image angle vertically |
160° |
67° |
45° |
34° |
23° |
11° |
58°-28° |
Distance 1 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
2.0 |
1.1 |
0.8 |
0.5 |
0.3 |
1.5-0.7 |
• Image height |
11 |
1.3 |
0.8 |
0.6 |
0.4 |
0.2 |
1.1-0.5 |
Distance 5 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
10.0 |
5.7 |
4.1 |
2.7 |
1.3 |
7.4-3.3 |
• Image height |
55 |
6.6 |
4.1 |
3.0 |
2.0 |
1.0 |
5.5-2.5 |
Distance 10 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
20.0 |
11.5 |
8.2 |
5.5 |
2.6 |
14.8-6.7 |
• Image height |
110 |
13.3 |
8.2 |
6.1 |
4.0 |
1.9 |
11.1-5 |
Distance 20 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
40.0 |
23.0 |
16.4 |
11.0 |
5.2 |
29.6-13.3 |
• Image height |
220 |
26.6 |
16.4 |
12.2 |
8.0 |
3.8 |
22.2-10 |
Distance 50 m |
m |
m |
m |
m |
m |
m |
m |
• Image width |
∞ |
100.0 |
57.5 |
41.0 |
27.5 |
13.0 |
74-33.3 |
• Image height |
550 |
66.0 |
41.0 |
30.5 |
20.0 |
9.5 |
55-25 |
 |
|
|
 |
 |
|
Indoor/Outdoor: |
In/Outdoor, weatherproof (IP66), -30...+60°C |
In/Outdoor, weatherproof (IP66), |
Lenses: |
L22 up to L135 |
Super Wide Angle |
Max. Image Resolution: |
3MEGA (2048x1536 pixels), color |
MEGA (1280x960 pixels), B/W |
Pan/Tilt/Zoom: |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Max. Video Rate: |
30 fps VGA • 30 fps CIF |
30 fps VGA • 30 fps MEGA |
Min. Light Intensity: |
1 lux (t=1/60s) • 0.05 lux (t=1/1s) |
0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) |
Interfaces: |
Ethernet 10/100 Mbit, USB, |
Ethernet 10/100 Mbit, USB, MxBus |
Internal DVR: |
Up to 32 GB with MicroSD card |
Up to 32 GB on MicroSD card |
Audio/Telephony |
Bidirectional, IP telephony (VoIP) |
Bidirectional, IP telephony (VoIP) |
Power Supply • In/Out: |
PoE (IEEE 802.3af) • via ExtIO |
PoE (IEEE 802.3af) • via ExtIO |
Software Features: |
FTP, E-Mail, video alarm management, |
FTP, E-Mail, video alarm management, |
Arming • Triggering: |
365-day schedule • multiple events |
365-day schedule • multiple events |
External Storage: |
Up to 1 TB on PC/Server/NAS |
Up to 1 TB on PC/Server/NAS |
Article No.: |
MX-M24M-Sec-D22 |
MX-M24M-Sec-Night-N22 |
| |
|
|
 |
 |
|
Indoor/Outdoor: |
In/Outdoor, weatherproof (IP66), |
In/Outdoor, weatherproof (IP66), |
Lenses: |
Exchangeable lenses from Super Wide Angle (90°) to Tele (135°) |
Exchangeable lenses from Super Wide Angle (90°) to Tele (135°) |
Max. Image Resolution: |
VGA (640x480 pixels), color |
VGA (640x480 pixels), B/W |
Pan/Tilt/Zoom: |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Max. Video Rate: |
30 fps VGA • 30 fps CIF |
30 fps VGA • 30 fps CIF |
Min. Light Intensity: |
1 lux (t=1/60s) • 0.05 lux (t=1/1s) |
0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) |
Interfaces: |
Ethernet 10/100 Mbit, USB, MxBus |
Ethernet 10/100 Mbit, USB, MxBus |
Internal DVR: |
Up to 32 GB with MicroSD card |
Up to 32 GB with MicroSD card |
Audio/Telephony |
Bidirectional, IP telephony (VoIP) |
Bidirectional, IP telephony (VoIP) |
Power Supply • In/Out: |
PoE (IEEE 802.3af) • via ExtIO |
PoE (IEEE 802.3af) • via ExtIO |
Software Features: |
FTP, E-Mail, video alarm management, |
FTP, E-Mail, video alarm management, |
Arming • Triggering: |
365-day schedule • multiple events |
365-day schedule • multiple events |
External Storage: |
Up to 1 TB on PC/Server/NAS |
Up to 1 TB on PC/Server/NAS |
Article No.: |
MX-M24M-IT-D22 |
MX-M24M-IT-Night-N22 |
| |
|
|
 |
 |
|
Indoor/Outdoor: |
In/Outdoor, weatherproof (IP66), |
In/Outdoor, weatherproof (IP66), -30...+60°C |
Lenses: |
CS-Mount Vario 24-54 |
L11 |
Max. Image Resolution: |
Color: 3MEGA (2048x1536 pixels) |
3MEGA (2048x1536 pixels), color |
Pan/Tilt/Zoom: |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Continuous up to 8x Zoom + Pan/Tilt (digital) |
Max. Video Rate: |
30 fps VGA • 30 fps CIF |
30 fps VGA • 30 fps CIF |
Min. Light Intensity: |
Color: 1 lux (t=1/60s) • 0.05 lux (t=1/1s) |
1 lux (t=1/60s) • 0.05 lux (t=1/1s) |
Interfaces: |
Ethernet 10/100 Mbit, USB, |
Ethernet 10/100 Mbit, USB, |
Internal DVR: |
Up to 32 GB with MicroSD card |
Up to 32 GB with MicroSD card |
Audio/Telephony |
Bidirectional, IP telephony (VoIP) |
Bidirectional, IP telephony (VoIP) |
Power Supply • In/Out: |
PoE (IEEE 802.3af) • via ExtIO |
PoE (IEEE 802.3af) • via ExtIO |
Software Features: |
FTP, E-Mail, video alarm management, video motion, Multiview, event search |
FTP, E-Mail, video alarm management, |
Arming • Triggering: |
365-day schedule • multiple events |
365-day schedule • multiple events |
External Storage: |
Up to 1 TB on PC/Server/NAS |
Up to 1 TB on PC/Server/NAS |
Article No.: |
MX-M24M-Sec-CSVario |
MX-M24M-Sec-D11 |
Mounting Options
Mounting to a wall |
Mounting to a Ceiling |
|
|
|
|
Tilting (wall mount) |
Tilting (ceiling mount) |
Dimensions
The SecureFlex mount enables easy mounting of the MOBOTIX M22M models to a wall or ceiling; the concealed cabling enhances the visual impression of the installation. The foot of the supplied wall mount is large enough to elegantly cover wall outlets.
|
|
|
|
